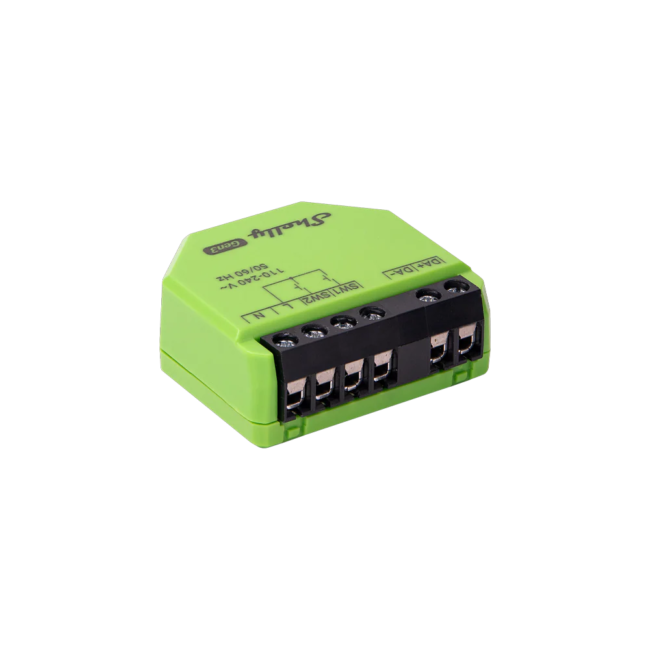

Shelly DALI Dimmer Gen3
Description
Elevate your lighting control with Shelly DALI Dimmer Gen3 – your ultimate device for brightness control of a DALI network of lights.
Features
Specification
Features
- Wi-Fi and Bluetooth connectivity (BLE gateway and Wi-Fi range extender)
- DALI single master application controller
- Supports LED control gear (DALI Part 207 gear)
- Bus power supply guaranteed 10mA (up to 5 DALI control gear units)
- Smart schedules
- Night mode: Enables to set a specific brightness of lights during night time
- Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control
- Button fade rate: Controls how quickly the brightness changes while holding the button(s)
- Transition duration: Controls the time for dimming from 0 to 100%
- Supports scripting, webhooks, MQTT and local actions
- Supports KNXnet / IP communication
- No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
Specification
Quantity | Value |
Physical | |
Size (HxWxD): | 42x37x17 mm / 1.65×1.46×0.66 in |
Power supply: | 110 – 240 VAC ±10% 50/60Hz |
Power consumption: | < 2 W |
Neutral not needed: | No |
Bus power supply | Guaranteed 10mA (up to 5 DALI control gear units), Short circuit current < 35 mA |
Bus voltage | 16V nominal |
Wi-Fi | 802.11 b/g/n |
Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | 4.2 |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
