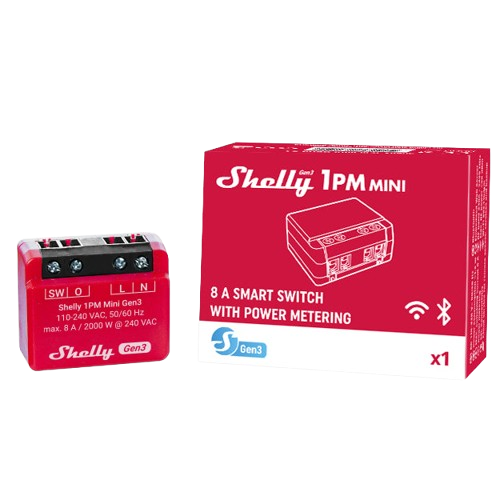

Shelly 1PM Mini Gen3
Description
World's smallest Wi-Fi relay switch with power metering. Automate lights & appliances in under 10 mins and monitor power consumption. Equipped with Shelly chip & all Gen3 features
Features
Specification
Features
- Equipped with a new processor & increased flash memory – ESP Shelly
- Improved durability of terminals
- Supports up to 8 A at 240 VAC
- Wi-Fi range extender & Bluetooth gateway
- Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation platform
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- Supports KNXnet / IP communication
Specification
Size (HxWxD): | 29x34x16 ±0.5 mm / 1.34×1.11×0.63 ±0.02 in |
Power supply: | 110 – 240 VAC |
Power consumption: | < 1.2 W |
Max. switching voltage: | 240 VAC |
Max. switching current: | 8A/240 VAC |
Max. switching power: | 2000 W |
Wi-Fi | 802.11 b/g/n |
Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | 4.2 |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
