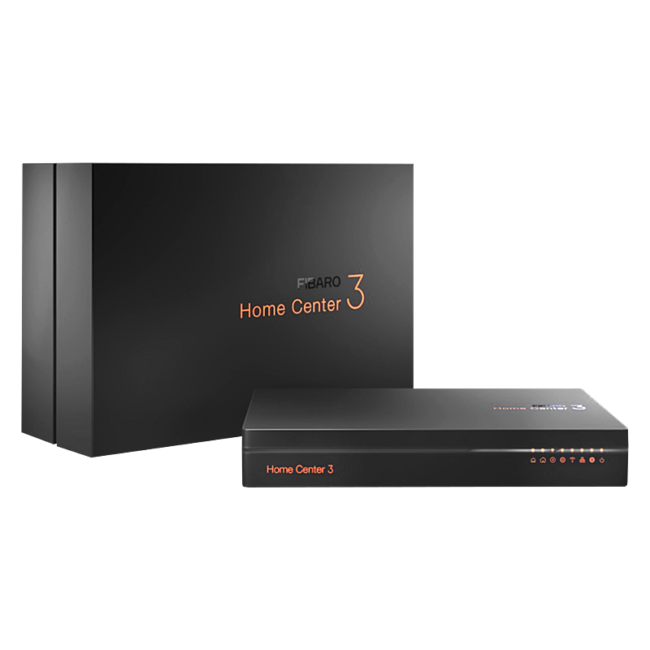

Home Center 3
Description
FIBARO Home Center 3 is the core element of the FIBARO System. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. The gateway is now even more secure, reliable, and versatile.
Features
Specification
Features
- Provides a reliable foundation for FIBARO System.
- Capable of controlling all FIBARO and other compatible devices using the following radio standards:
- Z-Wave (500 series)
- Wi-Fi – 2.4 GHz and 5 GHz (802.11 b/g/n/a/ac)
- Nice FLOR, OPERA and PLN2+
- Elero PLN2
- No Internet cable required, works also on Wi-Fi
- Modern interface designed for ease of use
- Enhanced and convenient scene editor
- Support for more advanced apps and drivers
- May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers
Specification
Model | FGHC3-001 |
CPU | Quad-core Arm Cortex A53 (1.2GHz) |
RAM | RAM 2GB LPDDR3 |
Flash memory | 8GB eMMC |
Power supply | 12V DC (adapter included) |
Operating temperature | 0-40°C |
Operating humidity | max. 75% relative humidity (non-condensing) |
Network interface | 10/100 (Base-T) Ethernet via RJ45 connector |
USB | 1 (2.0) |
Power connector | barrel connector 5.5mm x 2.5mm (female) |
Dimensions | 220x140x35 mm |
Radio Communication
Protocol | Radio frequency band | Max. transmitting power | |
Z-Wave
(500 series) | EU | 868.0-868.6 MHz 869.7-870.0MHz | +14dBm |
AU, NZ, CL | 920-925Mhz | +5dBm | |
BR | 920-925Mhz | -2dBm | |
THA | 920-925Mhz | +7dBm | |
Wi-Fi
(802.11 b/g/n/a/ac) | 2.4GHz | 2400-2483MHz | +20dBm |
5GHz | 5150-5250MHz | +14dBm | |
433Mhz | EU, THA | 433.05-434.04Mhz | +10dBm |
AU, NZ, CL, BR | 433.05-434.04Mhz | +14dBm | |
868Mhz | EU | 868.0-869.65MHz | +10dBm |
